Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013

CODE: V2-11195

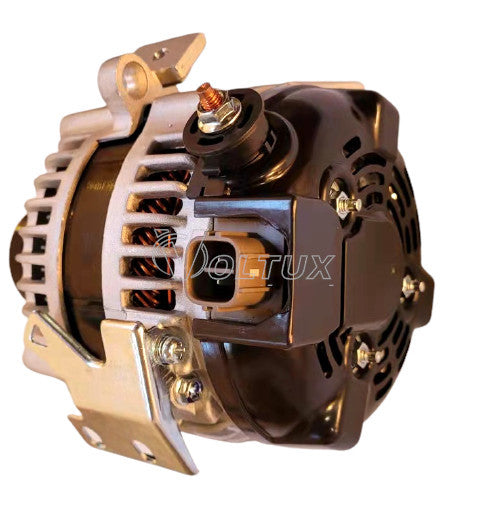

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 1

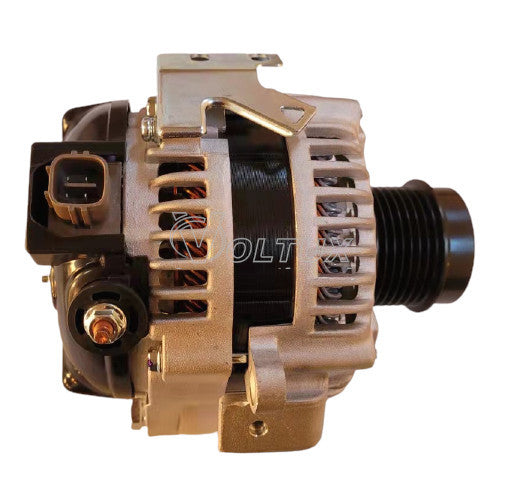

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 2

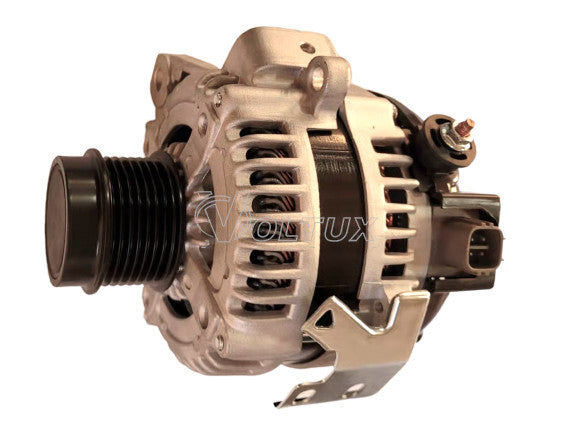

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 3

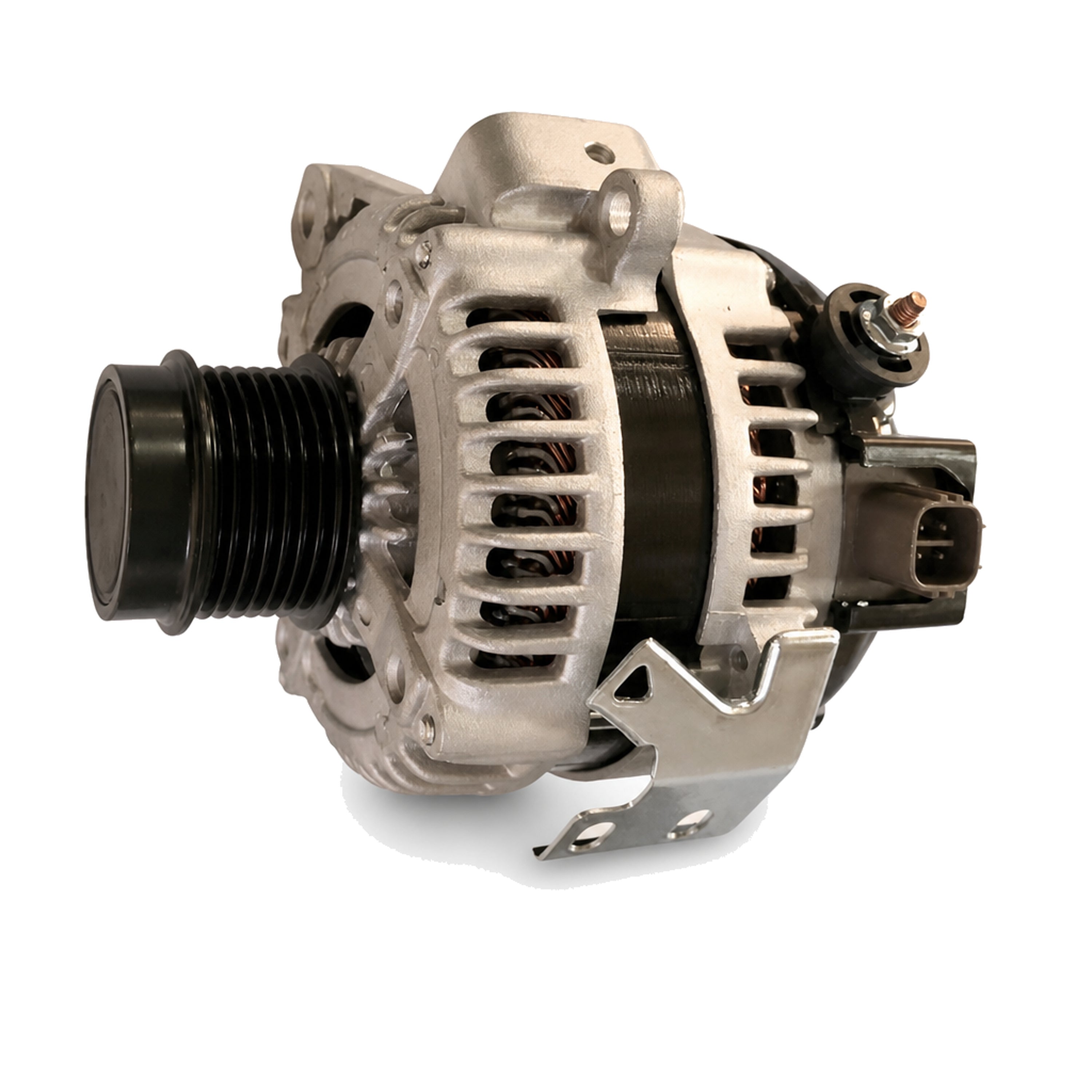

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 1

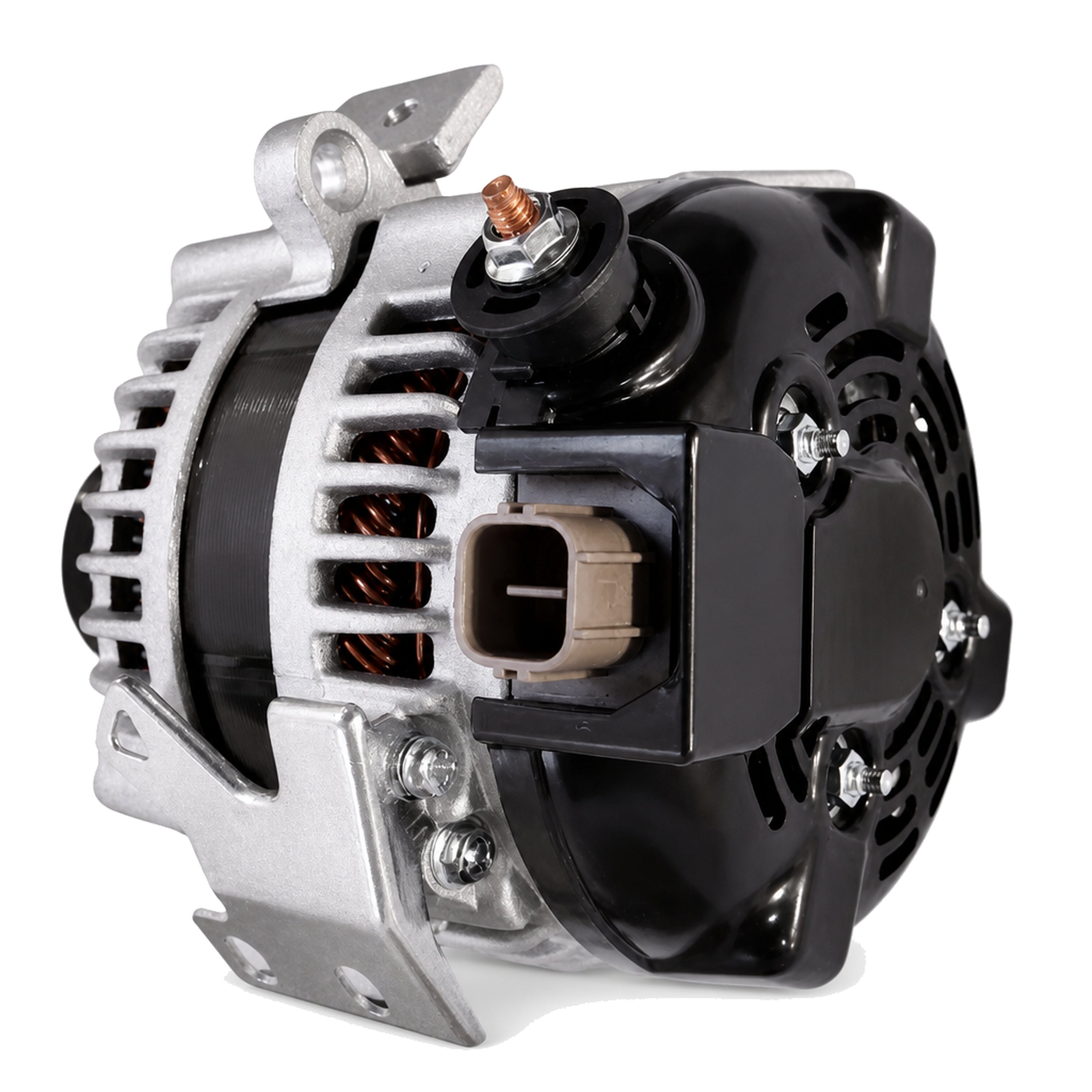

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 2

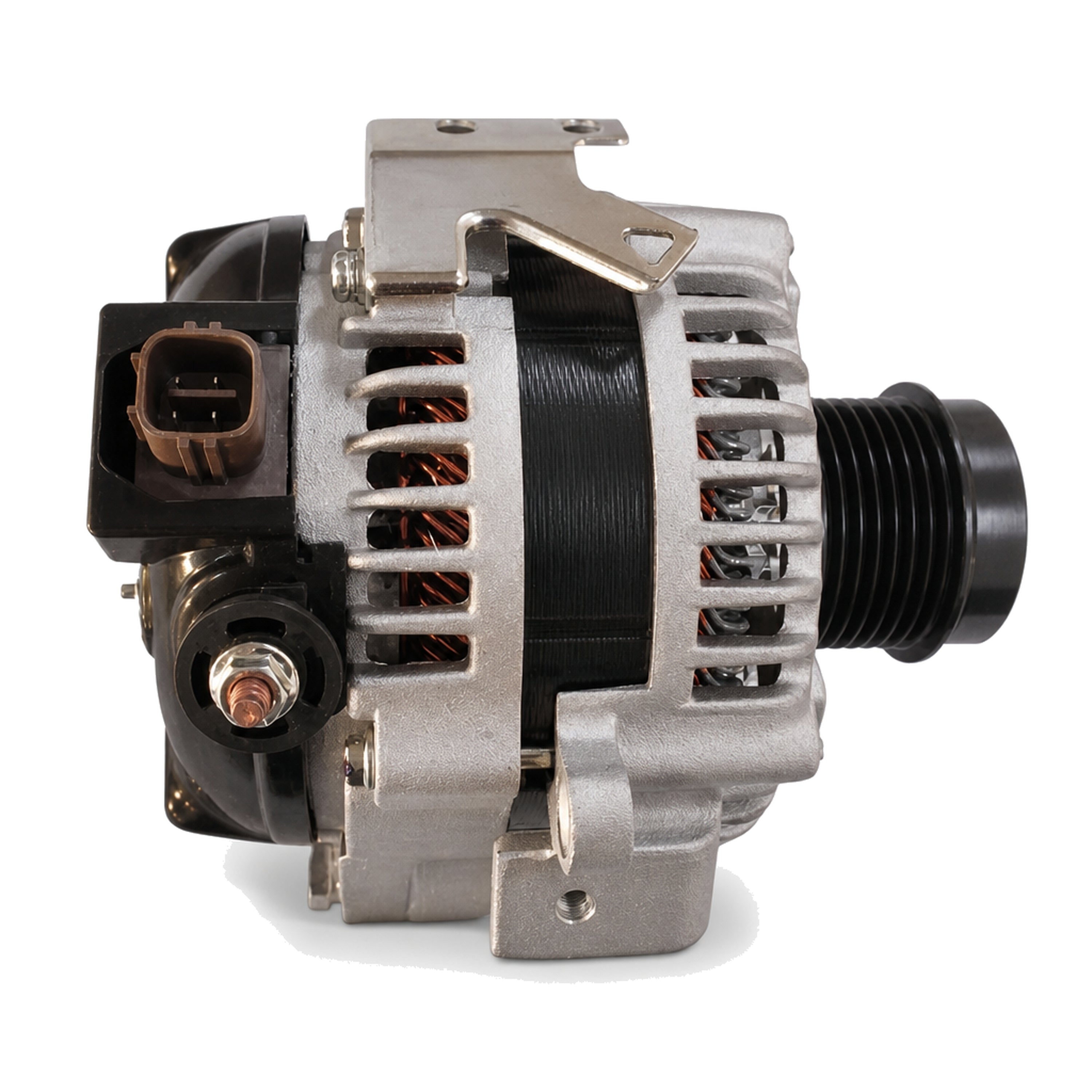

Toyota Camry Corolla Matrix Pontiac Vibe 2.4L Alternator 19205069 2007-2013 image 3
-19%
Free Shipping
$356.70
$290.00 In Stock Sold out
Notify when available

FAST. SECURE. RELIABLE.

25+ YEARS OF EXPERIENCE

COVERAGE AVAILABLE

  • Product info
  • Description
  • Compatibility
  • Shipping

Attributes

Manufacturer DENSO
Amperage Rating 100A
Decoupled / Clutch Pulley Yes
Design IR/IF
Fan Type Internal
Ground Type Negative
Manufacturer Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 2
Plug Clock (Rear View, Main Mounting Ear at 6 O'Clock) 2
Plug Code 917
Plug Orientation SIDE
Plug Type 917
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Od 55
Pulley Groove Quantity 7
Pulley Type SD7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12V

Reference Numbers

Arrowhead AND0396
Bosch Aftermarket AL3321N (New), AL3321X (Reman)
Bosch Service Europe 0-986-UN0-052, 0-986-UR0-052
DENSO 104210-488, 104210-4880, 104210-4881
General Motors 19205069, 88975511
IAT 210-11195, A11195
Lester 11195
PIC 290-5155B
Toyota 27060-0H110, 27060-0H111, 27060-0H111-84
Voltux V2-11195, V2-11195R
WAI 11195
WAI Old 1-3043-01ND

Vehicle Fitment (Buyer's Guide)

Make Model / Engine / Years
Pontiac Vibe • L4 2.4L (2362cc) • 2009–2010
Toyota Camry • L4 2.4L (2362cc) • 2007–2009
Corolla • L4 2.4L (2362cc) • 2009–2010
Matrix • L4 2.4L (2362cc) • 2009–2013
Reference Numbers
Arrowhead AND0396
Bosch Aftermarket AL3321N (New), AL3321X (Reman)
Bosch Service Europe 0-986-UN0-052, 0-986-UR0-052
DENSO 104210-488, 104210-4880, 104210-4881
General Motors 19205069, 88975511
IAT 210-11195, A11195
Lester 11195
PIC 290-5155B
Voltux V2-11195, V2-11195R
WAI 11195
WAI Old 1-3043-01ND
Compatibility (Buyer’s Guide)
Pontiac Car Vibe L4 2.4L 2362CC 2009-2010
Toyota Car Camry L4 2.4L 2362CC 2007-2009
Toyota Car Corolla L4 2.4L 2362CC 2009-2010
Toyota Car Matrix L4 2.4L 2362CC 2009-2013

Product Compatibility Chart

4 Vehicles
NO Make Model Years
1 Pontiac Vibe 2009-2010
2 Toyota Camry 2007-2009
3 Toyota Corolla 2009-2010
4 Toyota Matrix 2009-2013
